> SPECIFICATION | |||
Name | LED Tunnel Light | Item No. | HQ-SD-W400F |
Power | 400W | Input | AC85-265V 50/60Hz |
Lumen | 40000LM±5% | Viewing angle | 60/90° |
Color temperature | 2800-10000K | Color rendering index | >80 |
Working temperature | -30~+50℃ | Storage temperature | -30~+65℃ |
Protection grade | IP65 | LED lifespan | >50,000Hrs |
Shell color | Black | Measurement | 600*375*130MM |
> APPLICAITON | |
Widely used in tunnel, workshop, landscape, building, outdoor advertisement board, outdoor stadium, road lighting and etc. | |
> FEATURE | |
1. 1070 pure aluminum stamping process, good heat dissipation performance, lighter weight, efficiently extend the lighting source lifespan | |
2. Spray process for housing, aesthetics generous, sturdiness and durability | |
3. Driver external, easy for maintenance | |
4. Configured with a multitude of lens, adapt different applications | |
5. Waterproof design, protection grade reaches IP65 | |

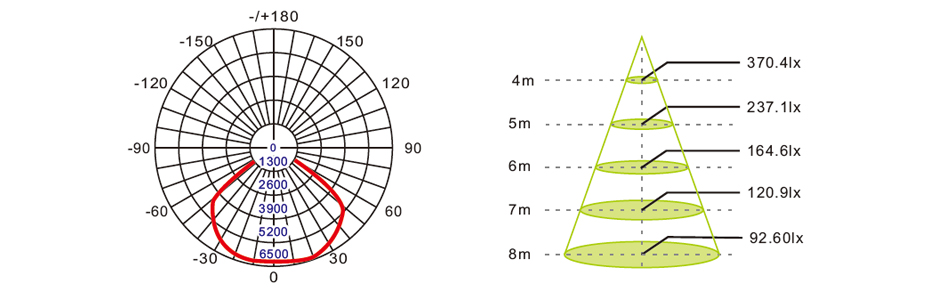

> DISTRIBUTION CURVE |

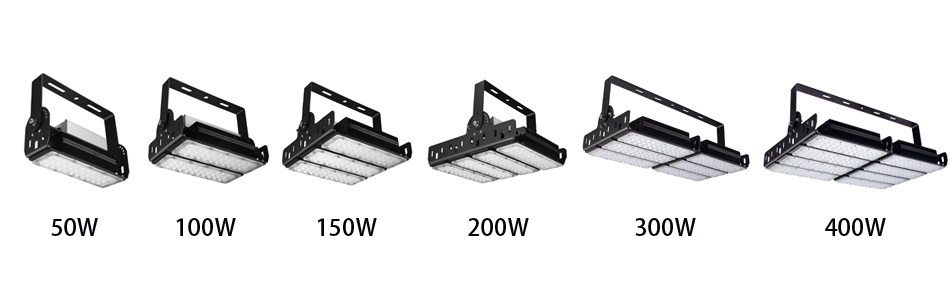

> ALL SERIES |
> ALL SERIES | |||
ITEM NO. | POWER | LUMEN | MEASUREMENT |
HQ-SD-W50 | 50W | 5200LM±5% | 315*193*130MM |
HQ-SD-W100 | 100W | 10500LM±5% | 315*240*130MM |
HQ-SD-W150 | 150W | 15700LM±5% | 315*285*130MM |
HQ-SD-W200 | 200W | 20000LM±5% | 315*375*130MM |
HQ-SD-W300 | 300W | 31000LM±5% | 600*285*130MM |
HQ-SD-W400 | 400W | 40000LM±5% | 600*375*130MM |
